ADA Pedestal Mount Square Concrete Drinking Fountain (GVJ1*)

2-4 week lead time:


*** Download PDF Specifications Below

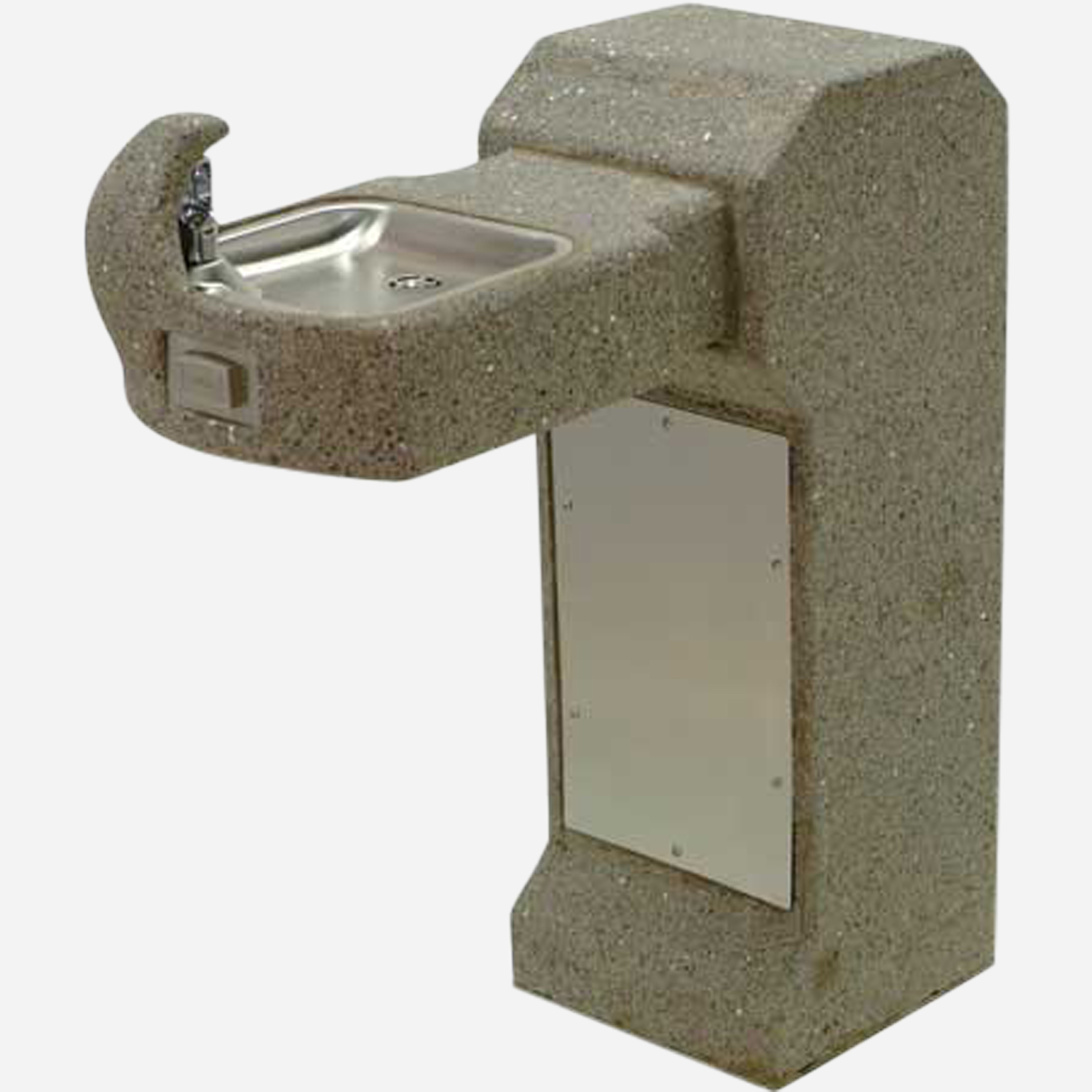

Barrier-Free Concrete Square Pedestal Drinking Fountain (GVJ)

  • Mounting:  Pedestal
  • Material:  Concrete Fountain , Stainless Steel Bowl
  • Pet Friendly:  Available Option
  • Sanitary Product:  Available Option
  • Freeze-Resistance:  Available Option
  • Activation:  Push Button
  • Style:  Square
  • Finish Available:  Brown Stone (shown) , Tan Stone

Standard Features:

  • Adult ADA Compliant
  • Resistant to sunlight, heat, moisture and wear
  • 18 gage, 304 stainelss steel bowl
  • Reinforced concrete with aggregate finish
  • Polished stainless steel, anti-rotation non-squirt bubbler
  • 100 mesh inlet strainer
  • Access door, heavy duty steel, vandal resistant
  • Vandal resistant galvanized steel bottom plate

Suggested Specifications:

Model GVJ19 is a barrier free pedestal mounted, vandal resistant, square drinking fountain made from an 18 gage, 304 stainless steel bowl mounted into a reinforced brown concrete aggregate pedestal. Unit shall be activated by a front mounted self-closing button, by using less than 5 pounds of force, which activates an internally mounted valve with an adjustable stream regulator controlling the water flow. Bubbler shall be polished stainless steel with a non- squirt feature and operate on water pressure range of 20-105 psig. Fountain is certified to ANSI A117.1, Public Law 111-380 (NO-LEAD), CHSC 116875 and NSF/ANSI 61, Section 9. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately.


Lead Time:  2-4 weeks before shipment.  This item is "Build to Order".
